Doosan Spindle Service
Doosan Spindle Repair & Rebuilds
Doosan and DN Solutions spindle service across the Midwest — Puma horizontal turning spindles, Lynx compact lathe spindles, DNM vertical spindles, NHM horizontal spindles, DVF 5-axis with RTCP verification, and the multitasking Puma MX/SMX B-axis milling spindles. Find your model below, or browse by series, control generation, or service type.
Browse by Series
Pick the Doosan platform you run for spindle failure patterns specific to that series.

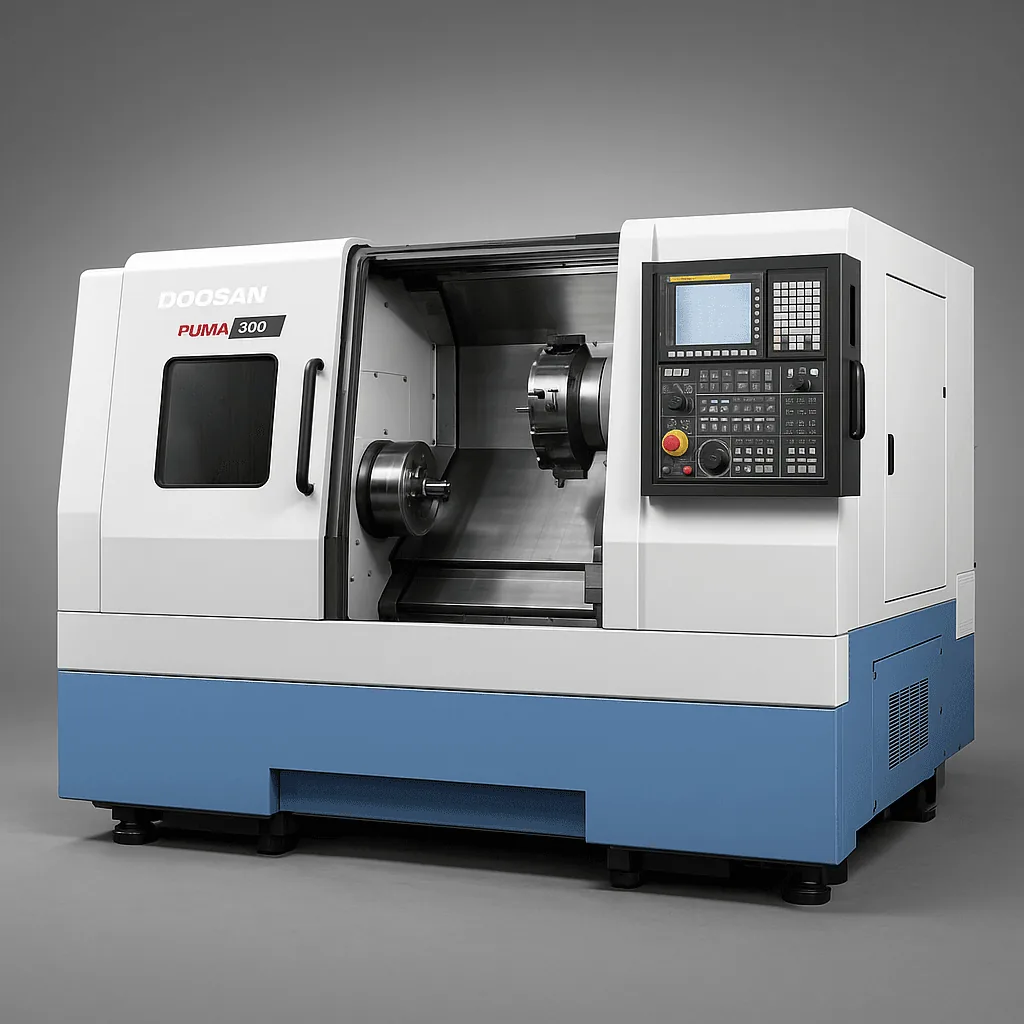

- Puma — Horizontal-turning spindles. Puma 230 through 800 with M/MS/LM/Y/SY variants and TT/GT/TW builds.
- Puma MX / SMX — Mill-turn multitasking spindles. Turning + B-axis milling — MX 1600 through 3100, SMX 2100/2600/3100.
- Puma V / VT / VTR — Vertical-turning spindles. Puma V400 through V9300 chuckers and VT/VTR ram-type.
- Lynx — Compact turning spindles. Lynx 220 through 300, high-cycle bar work.
- DNM — Vertical-machining spindles. DNM 200 through 750 plus DNM 200/5AX 5-axis.
- Horizontals (NHM / NHP / HC) — Horizontal spindles. NHM 4000 through 8000, NHP 4000 through 6300, HC 400/500.
- DVF / FM 5-Axis Verticals — 5-axis trunnion vertical spindles. DVF 5000/6500/8000 and FM 200/5AX. RTCP verification.
- Swiss-Type / DST — Swiss-style precision turning. SwiftTurn 32/38 and DST series.
Browse by Control Generation
Doosan ships almost exclusively on Fanuc. Pick the Fanuc generation your Doosan machine runs for spindle parameter-management considerations.
What brings Doosan spindles in for service
Most Doosan spindle calls fall into a few patterns: front bearing wear on Puma and Lynx chuckers from bar-feed production, B-axis milling spindle wear on Puma MX/SMX multitasking, high-RPM bearing failure on DNM finishing work, pallet-cycle bearing wear on NHM horizontals, and RTCP work on DVF 5-axis. Control-side, Doosan ships almost exclusively on Fanuc — most service runs against Fanuc 0i for entry builds and Fanuc 30i for higher-end multitasking and 5-axis.
How we approach Doosan spindle service
Doosan spindle service starts with the platform and the paired Fanuc control. Lynx and entry Puma run Fanuc 0i; higher-end Puma, MX/SMX, DVF, NHM run Fanuc 30i. Spindle parameters back up via standard Fanuc procedures. For multitasking and 5-axis platforms, post-rebuild kinematic verification is part of the service.
Lead Time & Process
Lead time on spindle work depends on the platform, the failure mode, and parts availability. Diagnostic is fast; full rebuilds run 3 to 5 weeks on most jobs. Our three-step workflow keeps it transparent:
- Contact us. Call 319-610-4341 or use the quote form. Tell us the machine, the spindle symptoms, and how urgent it is.
- Review & quote. We confirm the model and control generation, scope the spindle work, and send back a price and realistic lead time within one business day on most inquiries.
- Rebuild, verify, ship. We rebuild on the bench, verify balance and runout at sign-off, run kinematic verification on multitasking and 5-axis platforms, and return the spindle ready to install.
Why Shops Trust Us
Experienced field technicians with hands-on time across the major CNC OEM platforms, in-house precision spindle balancing capability, laser alignment services, and established relationships with aftermarket bearing and spindle component suppliers.
"Honestly, we thought the machine was done for." Most customers tell us they're relieved to avoid replacement lead times and six-figure capital expenses.
Frequently Asked Questions
What spindle work do you do on Doosan machines?
Bearing-pack replacement, taper grinding, dynamic balancing, drawbar service, encoder service. For Puma MX/SMX multitasking we also run B-axis kinematic verification; for DVF 5-axis we run RTCP verification. Runout and balance verification at sign-off is part of every rebuild.
How long does a Doosan spindle rebuild take?
3 to 5 weeks on most jobs. Puma MX/SMX B-axis milling spindle rebuilds run longer because of the multitasking kinematic verification. DVF 5-axis trunnion-machine rebuilds also run a bit longer for the RTCP work.
Doosan ships on Fanuc — what does that mean for spindle service?
It means spindle parameters live in the Fanuc parameter set, and the workflow follows the standard Fanuc backup procedures. For Lynx and entry Puma we work with Fanuc 0i; for higher-end Puma MX/SMX/DVF we work with Fanuc 30i. The αi and αii spindle drive families are well documented.
Do you service older Doosan machines with Fanuc 16i/18i/21i controls?
Yes. Those machines run the αi spindle drive generation which is still well supported through Fanuc. PCMCIA media migration to current paths is often a companion job to spindle service.
What about Puma MX/SMX B-axis milling spindles?
B-axis milling spindle rebuilds are routine work. Multitasking tolerances require careful B-axis kinematic verification after spindle work — we run the verification before sign-off.
Can you grind Doosan spindle tapers back to factory tolerance?
Yes. Precision spindle grinding to restore runout is part of every rebuild where the taper shows wear.
Related Doosan Services
- Doosan CNC machine repair
- Doosan CNC way covers
- See also spindle grinding on related platforms:
We serve shops across Iowa, Illinois, Minnesota, Wisconsin, Nebraska, Missouri, and Texas.
